4-600mm Weld Overlay Services Inconel 625 Cladding Seamless Tube Pipe Bar
| Place of Origin | China |
|---|---|
| Brand Name | Cheonny |
| Certification | ISO9001 ,ASME , EN, JIS, AiSi, GB, DIN, API |
| Model Number | Inconel 600 Stainless Steel Round Rod |
| Minimum Order Quantity | 5 tons |
| Price | Negotiable |
| Packaging Details | Customized |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 Tons/Month |
Product Details
| Diameter | 4-600mm (3/8"-25") | Application | Structural Steel Bar |
|---|---|---|---|
| Special Use | Cold Heading Steel | Surface | BA,2B,NO.1,NO.4,4K,HL,8K |
| Technique | Forging And Cold Drawing | Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| High Light | ISO9001 600mm weld overlay services,ISO9001 4mm weld overlay services,ISO9001 625 inconel cladding |
||
Product Description

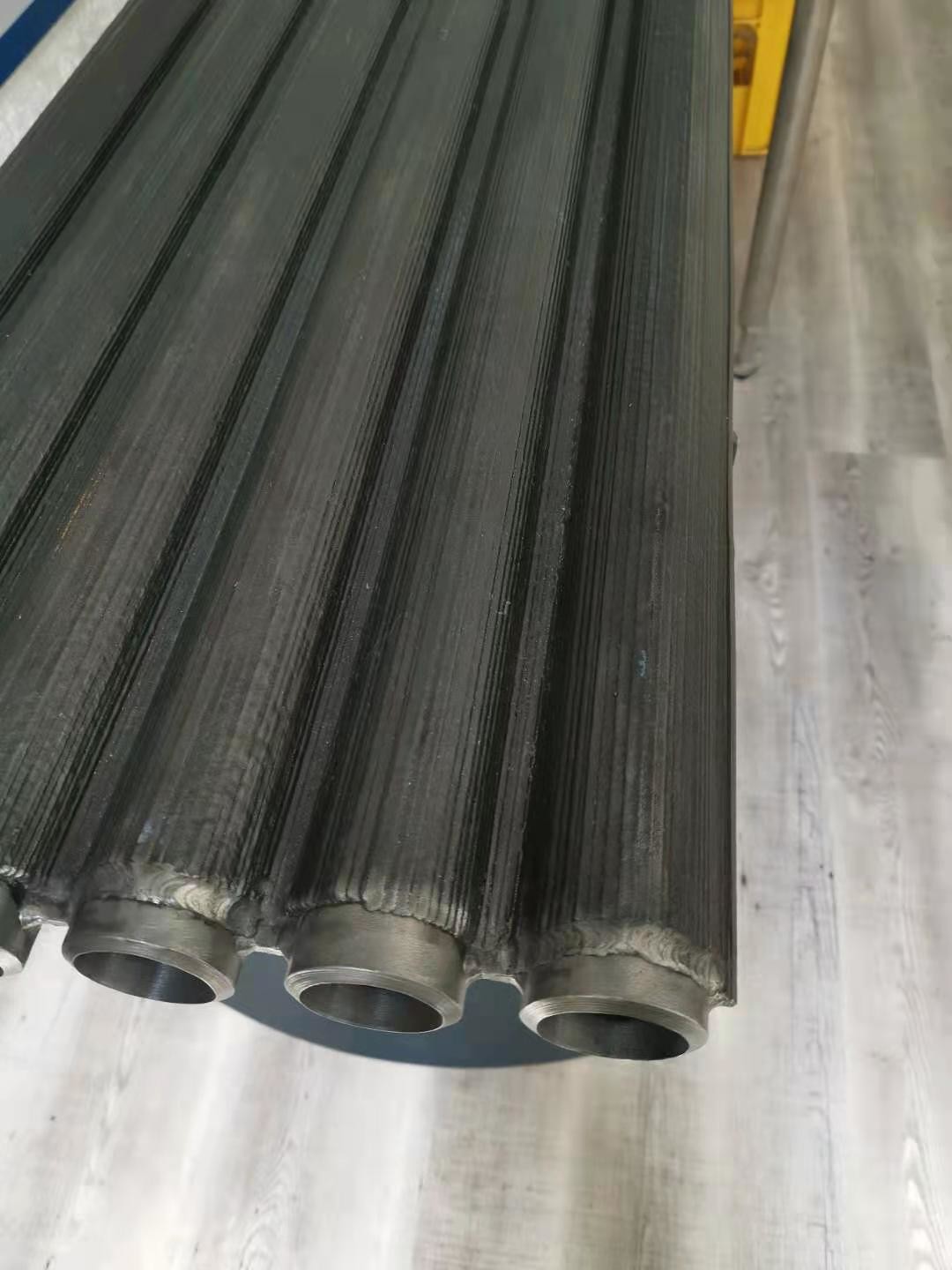

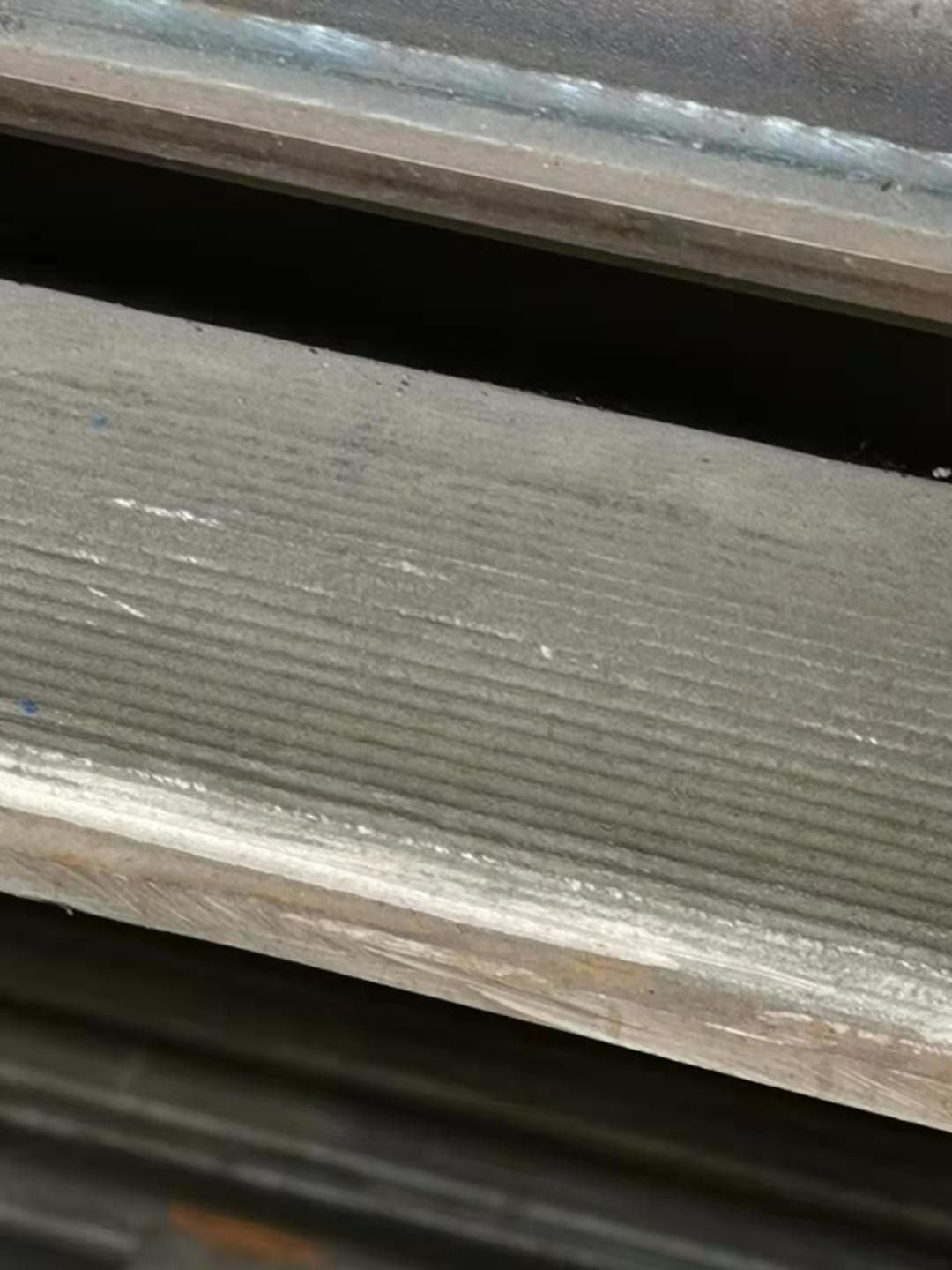

Inconel 625 Cladding Seamless Tube Pipe Bar On-site Weld Overlay Services
High temperature alloy has the high temperature hot corrosion and high temperature abrasion resistance,the metal material can work long-term which above 600 ℃ with under certain stress conditions.
Inconel 625
Features:Inconel 625 has excellent strength at temperatures up to 816℃. At higher temperatures, its strength is generally lower than that of other solid solution strengthened alloys. Inconel 625 has good oxidation resistance at temperatures up to 980℃ and shows good resistance to aqueous corrosion, but is relatively moderate compared to other more capable corrosion resistant alloys.
Applications:Chemical process industry and sea water application. Inconel 625 is used in short term applications at temperatures up to 816℃. For long term service, it is best restricted to a maximum of 593℃, because long term exposure above 593℃ will result in significant embrittlemen
Chemical Composition
| Cr | Ni | Mo | Co | Nb | Al | Ti | C |
|---|---|---|---|---|---|---|---|
| 20.00-30.00 | Remainder | 8.0-10.0 | 1.0 max | 3.15-4.15 | 0.40 max | 0.40 max | 0.10 max |
| Fe | Mn | Si | P | S |
|---|---|---|---|---|
| 5.0 max | 0.50 max | 0.50 max | 0.015 max | 0.015 max |
Density and Melting point
| Density | Melting point |
|---|---|
| 8.44g/cm³ | 1290-1350°C |
Mechanical Properties
| Finish Condition | Tensile strength Rm N/mm² | Yield strength R P 0. 2N/mm² | Elongation (%) Min | HB |
|---|---|---|---|---|
| Solution treatment | 760 | 345 | 30 | ≤220 |
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |
| Shape | Bar,Pipe/tube,sheet/plate,Forging,Ring,Coil,Flange,Ribbon,Square pipe/bar, |
| Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;etc | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750;ETC | |
| Incoloy: Incoloy 800/800H/800HT/825/925/926;etc | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044,etc | |
| Monel: Monel 400/K500/R405,etc | |
| Nitronic: Nitronic 40/50/60;etc | |
| Nimonic: Nimonic 75/80A/90/A263 ;etc | |
| Specification | Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Product Characteristics |
1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
| Inspection | ISO,SGS,BV and so on. |
| Packaging | All our products are packed, stored, transported according to the international regulation.Or as customer's requirement provide special packing. |
